FJ2W2510210 USB 2.0 2MP Ultra Wide Angle Camera Module with 175° FOV

ElecSuppliers ApplicationsSep 27, 2026

With a fixed-focus 3.1mm lens and approximately 175° diagonal field of view, the camera module is suitable for applications where a wide viewing range is more important than long-distance imaging.

The compact module can be integrated into robots, AGVs, inspection equipment, smart home devices, industrial computers, USB vision terminals and other embedded systems.

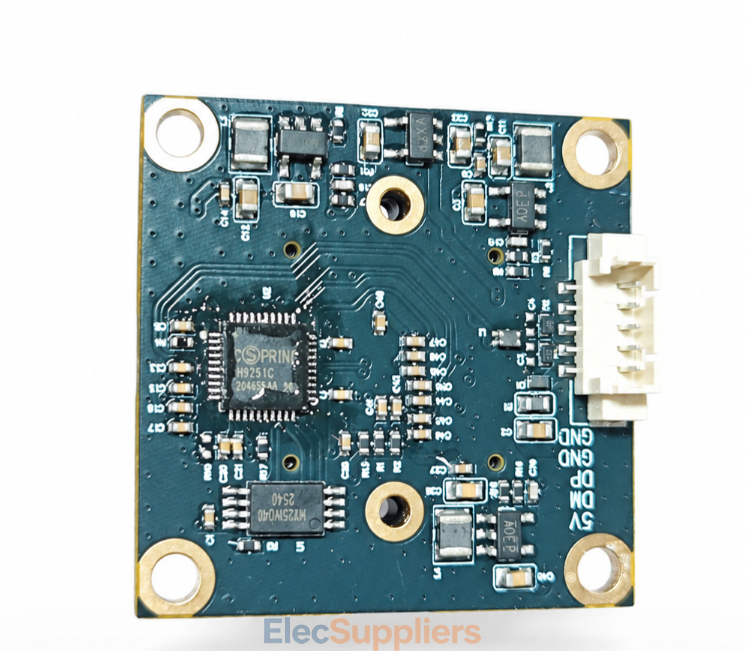

USB 2.0 Plug-and-Play Camera Module

The FJ2W2510210 uses a USB 2.0 interface and draws power directly from the USB connection.

The module operates from a 5V USB power supply, with power consumption of no more than 200mA. This simplifies integration for equipment that already provides a standard USB interface.

No separate power connection is required for typical USB-powered applications, helping reduce wiring complexity during product integration.

The camera outputs a JPEG video stream at 1920×1080 resolution and 30fps, providing a practical solution for real-time visual applications.

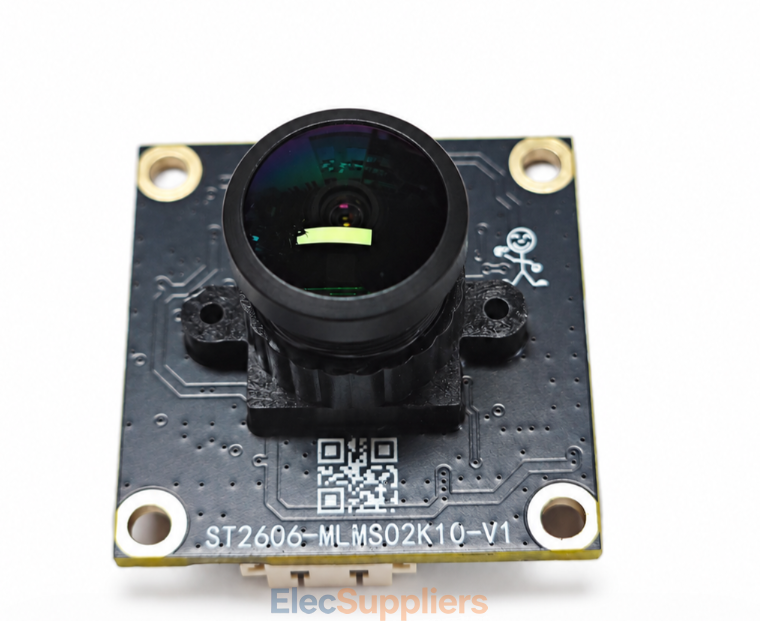

2MP OS02K10 CMOS Sensor

The camera module uses a 1/2.8-inch OS02K10 CMOS image sensor with a pixel size of 2.9μm × 2.9μm.

The 2MP sensor supports Full HD 1920×1080 image output, making the module suitable for equipment that requires a balance between image resolution, processing requirements and module size.

The sensor configuration can be used in embedded vision systems where real-time 1080P image acquisition is required.

175° Ultra Wide Angle Field of View

One of the main features of the FJ2W2510210 is its approximately 175° diagonal field of view.

The ultra wide angle design allows the camera to capture a much larger area than a conventional narrow-angle camera, which can be useful when the available installation space is limited or when the equipment needs to monitor a wide surrounding area.

The module can be considered for:

• Robot front-view cameras

• AGV environmental vision

• Inspection equipment

• Smart doorbells

• Video intercom systems

• Wide-angle monitoring

• Embedded USB vision systems

• Vehicle auxiliary cameras

• Smart home devices

The TV distortion specification is below -28%, and image correction can be considered at the software or application level according to the requirements of the final product.

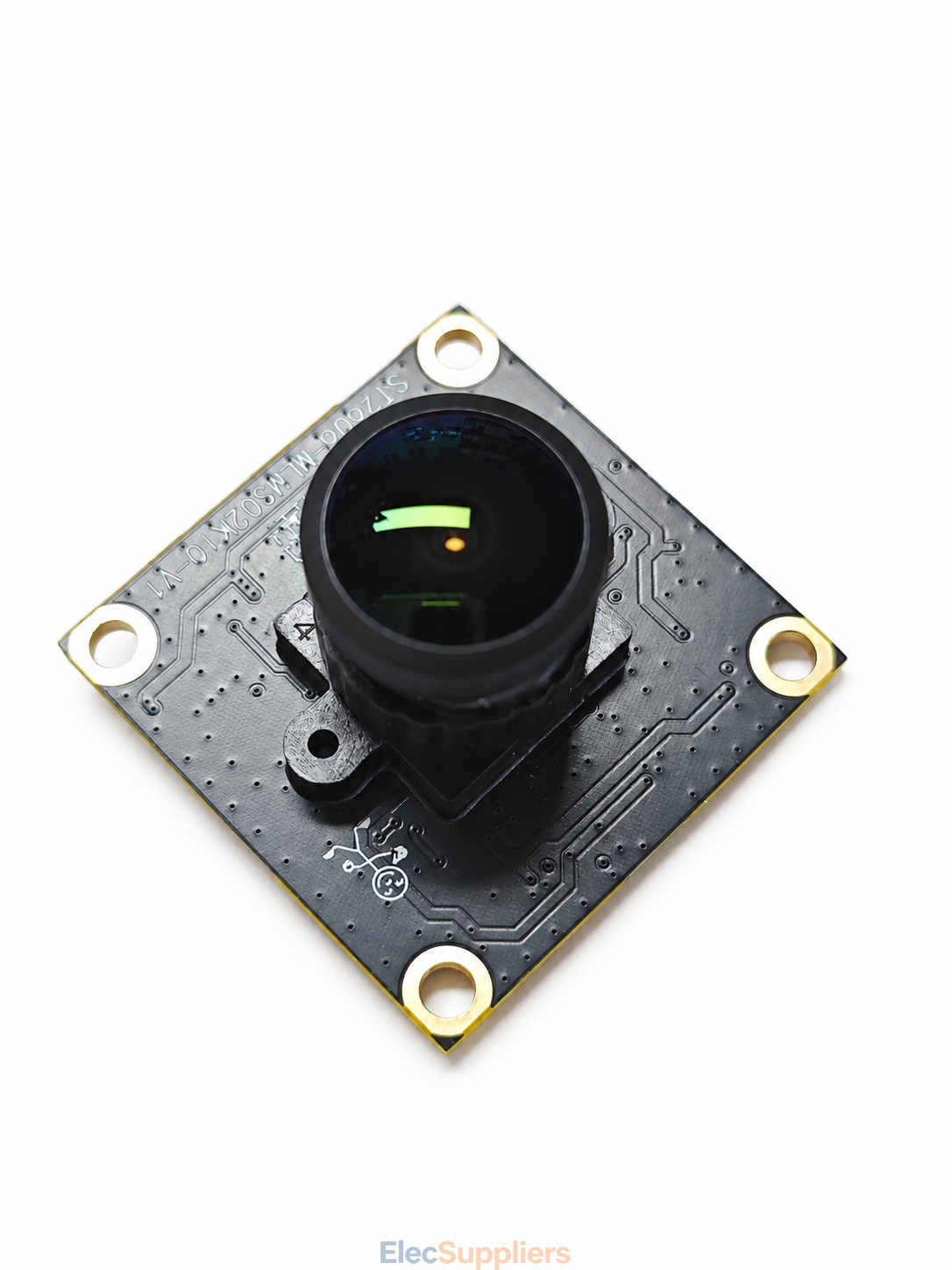

Fixed-Focus 3.1mm Lens

The module uses a 3.1mm fixed-focus lens with an F/No. of 2.2.

The fixed-focus configuration provides a relatively simple optical structure and does not require an autofocus mechanism.

The specified object distance is approximately 120mm, making the module suitable for applications that need to capture nearby objects while maintaining a broad viewing range.

This can be useful for robotics, interactive equipment, embedded displays and other systems where the camera is installed relatively close to the target area.

Compact Camera Solution for Embedded Equipment

The FJ2W2510210 is designed as an embedded camera module rather than a standalone USB webcam.

Its small form factor allows it to be integrated into different types of equipment where installation space is limited.

Typical applications include:

Robots and AGVs

The wide-angle camera can be used for front-view imaging and environmental observation in mobile robots, AGVs and other autonomous equipment.

Inspection Equipment

The camera can provide a broad image area for inspection devices and equipment that need to monitor nearby surroundings.

Smart Doorbells and Video Intercoms

The 175° field of view can help cover a larger area around a doorway or entrance compared with a conventional narrow-angle camera.

Industrial Computers and USB Vision Terminals

The USB 2.0 interface allows the module to be connected to compatible industrial computers, embedded computers and other USB vision systems.

Vehicle Auxiliary Vision

The camera can be considered for auxiliary observation, reversing assistance and surrounding-view image acquisition, subject to the requirements of the vehicle system.

Smart Home and IoT Equipment

The combination of USB connectivity, Full HD output and wide-angle imaging makes the module suitable for various smart home and IoT products that require embedded image capture.

VR and Panoramic Vision Applications

The ultra wide angle lens can also be used as a front-end image acquisition solution for applications where a wide field of view is required. Software-based distortion correction can be applied according to the imaging system.

Visible-Light Applications

The FJ2W2510210 does not use an IR-CUT filter and is primarily intended for normal visible-light environments.

This configuration is suitable for standard indoor and general visible-light applications where infrared night vision is not a primary requirement.

For products that require IR illumination or day-and-night switching, a different optical configuration may be more appropriate.

Operating Temperature

The specified operating temperature range is -30°C to 70°C.

This allows the module to be considered for a range of indoor, industrial and equipment-level applications where the operating environment may experience temperature variations.

The actual suitability of the module should be evaluated according to the complete product enclosure, heat generation and environmental conditions.

Reference Specifications

Module No.: FJ2W2510210

Sensor: 1/2.8-inch CMOS OS02K10

Resolution: 1920×1080

Frame Rate: 30fps

Video Format: JPEG

Interface: USB 2.0

Power Supply: USB bus power, 5V

Power Consumption: ≤200mA

Lens: Fixed focus

Lens Focal Length: 3.1mm

Aperture: F/2.2

Field of View: Approximately 175° diagonal

Pixel Size: 2.9μm × 2.9μm

Package: CSP

Object Distance: Approximately 120mm

TV Distortion: < -28%

IR-CUT: Not included

Operating Temperature: -30°C to 70°C

Assembly: SMT, RoHS

Integration Considerations

When integrating the FJ2W2510210 into a finished product, the camera position, viewing direction, enclosure opening and distance from the target should be considered during mechanical design.

Because the module uses a fixed-focus lens, the installation distance should be evaluated according to the required image clarity. The approximately 120mm object distance can be used as a reference when designing the camera position.

The ultra wide angle lens also introduces significant geometric distortion. Depending on the application, image correction may be required in the host device or software.

For USB vision products, the host system should also be evaluated for USB compatibility, video-stream processing and available system resources.

Applications

The FJ2W2510210 USB camera module can be used in:

• Robots

• AGVs

• Inspection equipment

• Smart doorbells

• Video intercoms

• USB vision terminals

• Industrial computers

• Embedded devices

• Video conferencing equipment

• Interactive displays

• Education equipment

• Vehicle auxiliary vision systems

• Smart home products

• IoT devices

• Wide-angle imaging equipment

• VR and panoramic vision systems

A Practical Wide-Angle USB Camera Module

The FJ2W2510210 combines a USB 2.0 interface, 2MP OS02K10 CMOS sensor, 1920×1080 video output, fixed-focus 3.1mm lens and approximately 175° diagonal field of view in a compact camera module.

Its USB bus-powered design simplifies integration, while the wide-angle optical configuration makes it suitable for equipment that needs to capture nearby subjects across a large viewing area.

For robots, AGVs, inspection equipment, smart home devices and other embedded vision products, the module provides a straightforward option for adding Full HD wide-angle image capture.
